Wireless Outdoor CPE

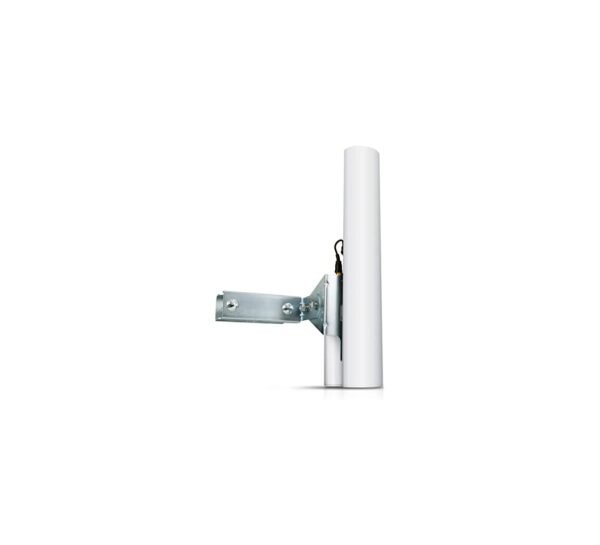

AM-5G19 – Ubiquiti Antenna 5Ghz 19dBi 120-deg Dual-Pol Sector
This antenna is used in conjunction with the Rocket M5 to form a base station, which can then communicate with multiple CPE devices (Customer Premises Equipment) across a wide area, facilitating efficient distribution of wireless service, especially in rural or underserved locations.
- Frequency Range: 5.15 – 5.85 GHz
- Gain: 19 dBi
- Polarization: Dual Linear (Vertical and Horizontal)
- Cross-pol Isolation: 28 dB min
- Max VSWR: 1.5:1
- HPOL Beamwidth: 123 degrees
- VPOL Beamwidth: 123 degrees
- Elevation Beamwidth: 4 degrees
- Electrical Downtilt: 2 degrees
- Dimensions: 700 x 145 x 79 mm
- Weight: 5.9 kg
- Wind Survivability: Up to 200 km/h
- Mounting: Pole-Mounting Kit included
KSh 25,999.00
CompareDescription
AM-5G19 – Ubiquiti Antenna AM-5G19 5Ghz 19dBi 120-deg Dual-Pol Sector
The Ubiquiti AM-5G19 is a sector antenna that operates in the 5H GHz frequency band, offering a gain of 19 dBi. It’s designed to integrate seamlessly with Ubiquiti radios, specifically the Rocket M5, to create a powerful and robust outdoor base station. The antenna features a weather-resistant construction, making it ideal for outdoor deployment in varying environmental conditions.
Features
- High Gain: At 19 dBi, the AM-5G19 offers significant signal enhancement, which translates into improved range and performance.
- 120-degree Beamwidth: The wide beamwidth enables coverage over a broad area, making it suitable for sector coverage in a wireless network.
- Dual-Polarization: Supports dual-polarization (vertical and horizontal), which helps in reducing interference and increasing network throughput.
- Integrated Rocket Mount: The antenna includes a built-in Rocket mount, allowing for easy installation with Ubiquiti’s Rocket M Series radios, ensuring a secure and stable connection.
- Weatherproof Design: Built to withstand harsh outdoor conditions, ensuring reliable performance regardless of weather variations.
Based on 0 reviews
Be the first to review “AM-5G19 – Ubiquiti Antenna 5Ghz 19dBi 120-deg Dual-Pol Sector”
