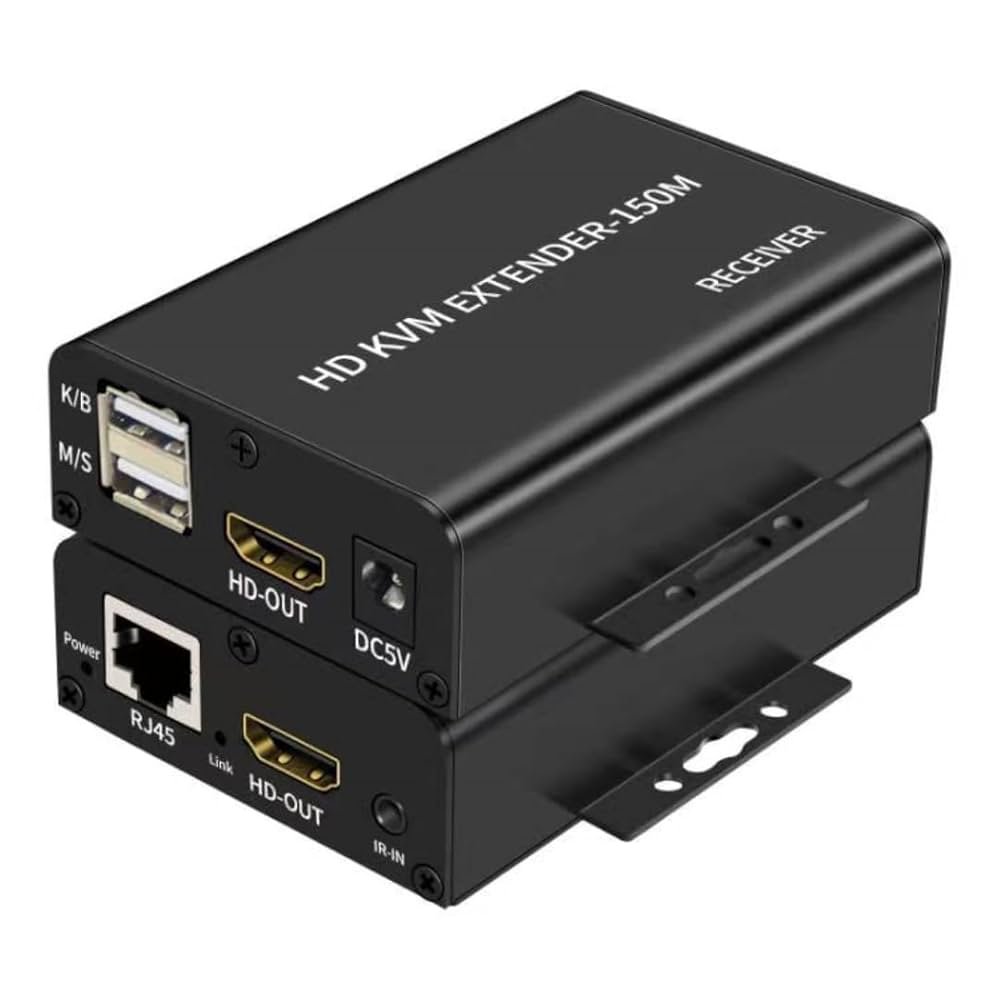

HDMI 150 meters KVM Extender
Hdmi 150m kvm extender
Ksh 9500 excl vat
Key features:
>HDMI 1.4
>6.75 Gbps video bandwidth
>Supports Full HD, 1920×1200/60 Hz, 4:4:4
>HDCP 1.4
>Supports CAT 5e, 6, 6A, 7, 8 network cable
>Maximum transmission distance: 150 m (point-to-point connection)
>Supports H.256 encoding/decoding
>USB 1.1
>Compression: H.265
>Transmitter unit connections:
>1x HDMI input (1920×1200/60Hz) – Connection signal source
>1x RJ45 output – Connection CAT transmission cable
>1x USB-B input – Connection host PC for use of KVM functionality
>1x IR output – Connection of IR transmitter
>1x Power adapter input (DC 5V/1A) – Connection for external power adapter
>Receiver unit connections:
>1x HDMI output (1920×1200/60Hz) – Connection output device
>1x RJ45 input – Connection CAT transmission cable
>2x USB-A (1.1) input – Connection of mouse and keyboard
>1 x IR input – Connection of IR receiver
>1x Power adapter input (DC 12V/1A) – Connection for external power adapter
>ESD protection
>Operating temperature: -10-50 °
>Power consumption: Transmitter approx. 1.4W, Receiver approx. 1.7W
>Housing: Metal
>Dimensions (1 unit): L 9.15 x W 6.7 x H 1.75 cm
>Weight: Transmitter 155 g, Receiver 150 g
KSh 9,500.00
CompareAbout this item
- 1* The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves, however CAT-5E/6 cables are available everywhere and can be processed easily by the user or installer.
- 2*Because the head of the long HDMI cable is big, using it must in hidden method, what is more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However,CAT-5e/6 cables do not have such problems.
- 3* With this extender, the transmission distance can be up to 150M while using CAT-5e/6 cables, for the general HDMI cables, they must be customized when the length is over 10 meters. We also have 30M,60M,120M available, thanks.
- 4*One pair as a full functional module, no need of setting.*CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.*CAT-5e/6 follow the standard of IEEE-568B,*Transmission distance can be up to 150M for 1080p while using CAT-5e/6 cable.
- 5*If the wireless keyboard and mouse are not supported, please change the brand or the wired keyboard and mouse. Wired keyboards and mice are strongly recommended. 1) No display with 1 metre cable:A: The length of the cable should be longer than 5 metres, below 5 metres there may be no display.
