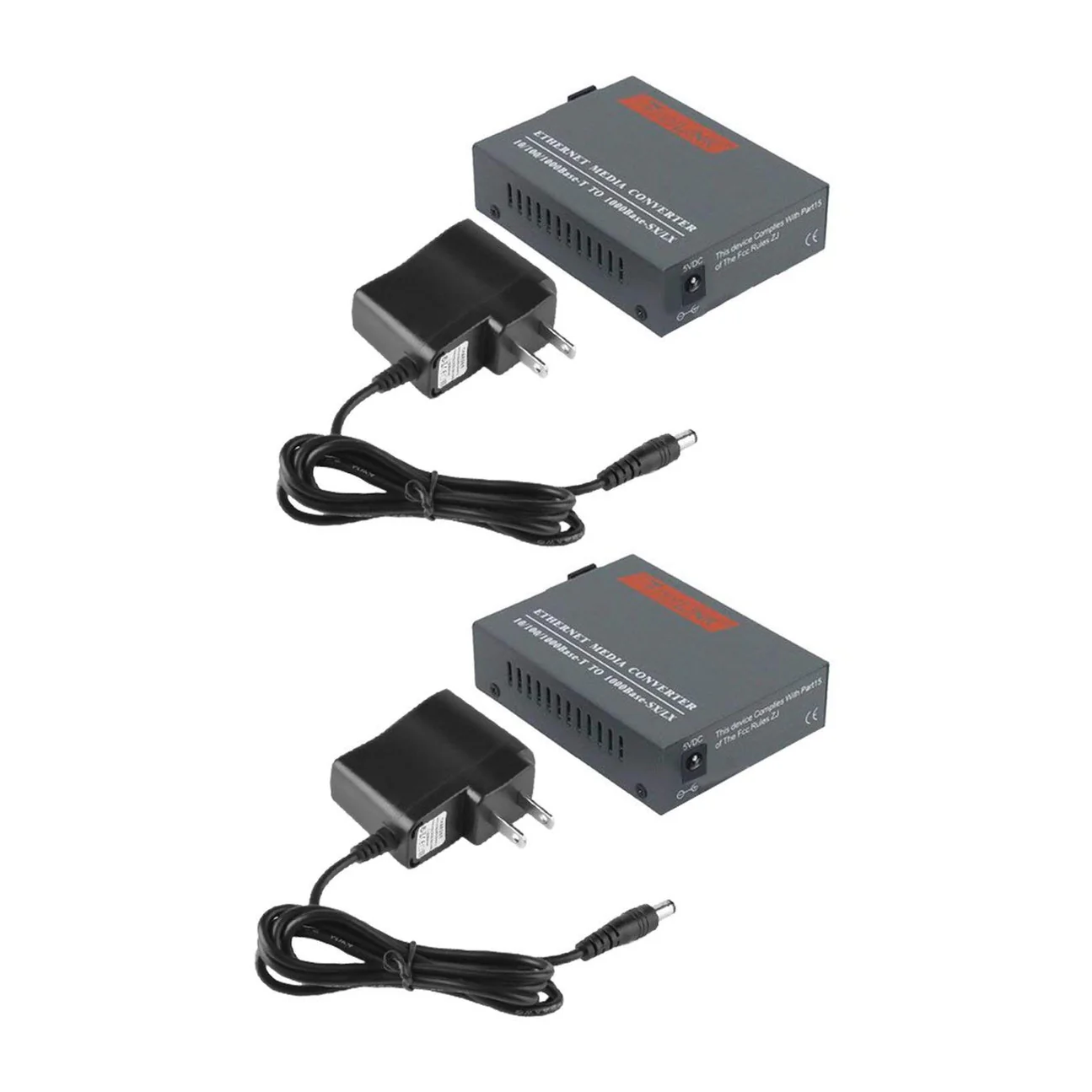

Single-mode Fiber Optic Ethernet Media Converter 1000 base (pair)
,

Single-mode Fiber Optic Ethernet Media Converter 1000 base (pair)

Add to wishlist
Compare

Single-mode Fiber Optic Ethernet Media Converter 1000 base (pair)

KSH 4000 EXCL OF VAT

Features

  1. Speed Support:

    • Supports 1000 Mbps (1 Gbps) Gigabit Ethernet per IEEE 802.3z/802.3ab standards.

  2. Media Conversion:

    • Converts between:

      • Copper (RJ45) to

      • Single-mode fiber (SC/LC/ST interface depending on model).

  3. Fiber Type single-mode fiber, optimized for long-distance transmission.

  4. Transmission Distance:

    • Common ranges: 10 km, 20 km, 40 km, 60 km, 80 km, or even up to 120 km, depending on model and optical transceiver power.

  5. Wavelength:

    • Typically uses 1310 nm for up to 20 km

    • Uses 1550 nm for longer distances (40 km+)

  6. Connector Types:

    • Copper side: RJ45 (Auto MDI/MDIX)

    • Fiber side: SC, LC, or SFP slot for pluggable modules

  7. Duplex Modes:

    • Supports full-duplex communication for fiber and copper

  8. Auto-Negotiation & Auto MDI/MDIX:

    • Automatically configures the link speed and crossover type

  9. LED Indicators:

    • Power, Link/Activity, Speed, FX Link (fiber status), and more

  10. Power Options:

    • External adapter or integrated PSU

    • Options for industrial DIN-rail mount or rack-mount chassis (for multiple converters)

  11. Standards Compliance:

    • IEEE 802.3ab (1000Base-T)

    • IEEE 802.3z (1000Base-LX)

    • IEEE 802.3x (Flow Control)

  12. Build Options:

    • Standalone units or modular cards for managed media converter chassis

 Typical Applications:

  • Enterprise networks extending gigabit Ethernet across buildings or campuses

  • Data centers connecting core switches to remote racks

  • Telecom and ISP infrastructure over long-haul fiber

  • Industrial or transportation systems requiring ruggedized long-range Ethernet links

KSh 4,000.00

Compare

Single-mode Fiber Optic Ethernet Media Converter 1000 base (pair)

Single-mode Fiber Optic Ethernet Media Converter 1000 base (pair); (also known as Gigabit Ethernet Media Converter) is a networking device designed to extend Ethernet connections over long distances by converting electrical Gigabit Ethernet signals (1000 Mbps) to optical signals using single-mode fiber.

The manufacturer designed this Fiber Transceiver / Media Converter to convert data signals between 100/1000Base-T/TX and 1000Base-FX Fast Ethernet. Maximum transmission distance 65 kilometers over duplex Single mode

The Fiber Media Converter complies with IEEE 802.3z, IEEE 802.3 standards.

It is designed to convert data signal between 10 / 1000Base-T and 1000Base-FX Fast Ethernet. It supports 10 / 100Base-T and 1000 Base-FX applications.

The converter includes TX and RX fiber connectors, an RJ-45 port, and an external power socket.

The manufacturer integrates six LED indicators to simplify diagnosis and monitor power, UTP link, UTP activity, fiber connection, fiber activity, and full-duplex data rates. The system automatically configures it for full-duplex or half-duplex.

It is compact, cost-effective, low dissipative, high reliable and stable. Use it standalone or in a rack-mount chassis (up to 16 units) powered by a single internal power block.
